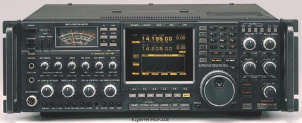

The ICOM IC-781 is a 10-160 m + WARC transceiver. RF output is 15-150 W (AM 8-75 W). Features include a spectrum scope, built-in keyer and AT, and twin RX. Dimensions are 168 × 429 × 439 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- 15-150 W (AM 8-75 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 429 × 168 × 439 mm (16.89 × 6.61 × 17.28 in)
- Weight
- 23.00 kg (50.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1987 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Spectrum scope Built-in keyer and AT. Twin RX
- Accessories
- -
- RigReference ID
- 3173
- MPN
- ICOM-IC-000781
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-781. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-781 is around:
- USD 215 ~ USD 400
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
