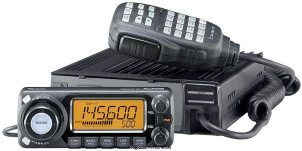

The ICOM IC-E208 is a Mobile VHF/UHF Transceiver. It covers 118-174 / 230-550 / 810-1000 MHz in receive and 144-146 / 430-440 MHz in transmit. The IC-E208 features an image rejection of better than 60 dB. The RF output is High: 55/50 W, Medium: 15/15 W, Low: 5/5 W. It has 1 memory bank with 512 memory channels and requires 13.8V DC +/- 15%. The IC-E208 includes CTCSS, 9K6 bd packet ready, and a multi color display. The transceiver weighs 1.2 kg and draws 0.8-1 A in receive and max 12 A in transmit. Dimensions are 40 × 141 × 185 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 512 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 / 230-550 / 810-1000 MHz
- Modulations
- AM FM N-FM
- Sensitivity
- 0.18 µV (12 dB SINAD)
- Selectivity
- FM: 12 kHz (-6 dB), 30 kHz (-60 dB)
N-FM: 6 kHz (-6 dB), 20 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Better than 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM N-FM
- RF-output
- High: 55/50 W, Medium: 15/15 W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- 0.8-1 A
- TX
- Max 12 A
Physical
- Dimensions (w×h×d)
- 141 × 40 × 185 mm (5.55 × 1.57 × 7.28 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2003 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS. 9K6 bd packet ready Multi color display
- Accessories
- -
- RigReference ID
- 3191
- MPN
- ICOM-IC-E000208
