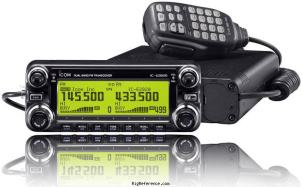

ICOM IC-E2820

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (2) Compare

Find ICOM IC-E2820 rigs and spare parts on eBay

The ICOM IC-E2820 is a Mobile VHF/UHF Transceiver. It covers 118-550 / 810-999.99 MHz (receive) and 144-146 / 430-440 MHz (transmit, Europe). The transceiver features twin RX and diversity reception. Tuning steps are selectable from 5/6.25/10/12.5/15/20/25/30/50 kHz. RF output is selectable between High: 50/50 W, Medium: 15/15 W, and Low: 5/5 W. It has 1 memory bank with 522 channels. The IC-E2820 includes features such as DTMF, CTCSS, and a DV/GPS option (UT-123). Current drain is 1.2-1.8 A (receive) and Max 13 A (transmit). Dimensions are 40 × 150 × 188 mm. The main unit plus controller weighs 1.7 gr.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Memories: 522 channels in 1 bank(s)

Receiver

RX-range: 118-550 / 810-999.99 MHz
Modulations: AM FM N-FM DV
Sensitivity: <0.18 µV (12 dB SINAD)
Selectivity: FM: 10 kHz (-6 dB), 30 kHz (-60 dB)
FM-N: 6 kHz (-6 dB), 20 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: >60 dB
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz (Europe)
Modulations: FM N-FM DV
RF-output: High: 50/50 W, Medium: 15/15 W, Low: 5/5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC +/- 15%
Current drain RX: 1.2-1.8 A
TX: Max 13 A

Physical

Dimensions (w×h×d): 150 × 40 × 188 mm (5.91 × 1.57 × 7.40 in) controller: 1505832 mm
Weight: 2 gr (0.1 oz) Main unit + Controller
Form factor: Mobile
Manufactured: Between 2007 and 200x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: DTMF. CTCSS. DV/GPS option (UT-123) Diversity reception. Twin RX.
Accessories: -
RigReference ID: 3192
MPN: ICOM-IC-E002820

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-E2820. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-E2820 is around:

EUR 129.00 ~ EUR 67.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2013	EUR 515.00	New / Mint	thiecom.de
2010	EUR 515.00	New / Good	thiecom.de
