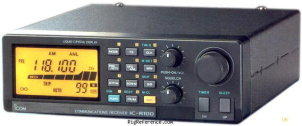

ICOM IC-R100

Mobile HF/VHF/UHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

Find ICOM IC-R100 rigs and spare parts on eBay

Find the ICOM IC-R100 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The Icom R100 is a compact multi-function receiver covering from 100 kHz to 800 MHz and 900 to 1856 MHz (specifications guaranteed from 500 kHz to 800 and 900 to 1800 MHz). Reception modes include AM, FM and FM-wide. The R100 is easy to operate. You can use either the keypad or tuning control to access frequency and memory channels. Of the 121 total memory channels, 100 store operating frequencies, modes, RF attenuator and preamplifier settings. 20 scan edge memory channels are used for specifying ten pairs of frequency ranges required for programmed scan. Auto-memory write automatically memorizes received frequencies (channels 80 ~ 99). One channel is used for priority scan. The built-in 24 hour clock-timer has lithium battery backup. A 15 dB preamp operates in the 50 to 800 MHz range. Three separate antenna jacks on the rear panel are utilized for 0.1 - 50 (SO239), 50 - 800 (N) and 905 - 1856 MHz (N). A large backlit LCD ensures readability. Other supplied features include: AFC, ANL, mobile bracket and telescopic antenna.

The R100-3 model is the same as the R100-11, but without the 800-900 MHz gap. The R100-3 was available for government or export only.

General characteristics

HAM bands: 6m
Frequency stability: ?
Tuning steps: 1 / 5 / 8 / 9 / 10 / 12.5 / 15 / 20 / 25 kHz
Memories: 100 channels in 1 bank(s)

Receiver

RX-range: 0.1-1856 MHz
Modulations: AM FM W-FM
Sensitivity: 1.60 µV 1.6-50 MHz
0.56 µV 50-905 MHz
1.00 µV 905-130 MHz
1.40 µV 1380-1800 MHz
Selectivity: AM: 6.0 kHz
N-FM: 15 kHz
W-FM: 180 kHz
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 2.5 W @ 4 - 8 ohms

Connections

Antenna: SO-239 + N-type
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 1.1 A max
TX: -

Physical

Dimensions (w×h×d): 150 × 50 × 181 mm (5.91 × 1.97 × 7.13 in)
Weight: 1.40 kg (3.1 lbs)
Form factor: Mobile
Manufactured: Between 1990 and 1998 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3212
MPN: ICOM-IC-R000100

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-R100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-R100 is around:

EUR 199.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2022	EUR 200.00	Used / Good	SWL_de
