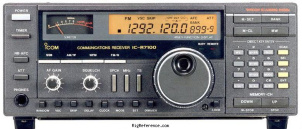

The Icom IC-R7100-12 VHF-UHF receiver covers from 25 to 800 and 900 to 2000 MHz in the following modes: AM, AM-W, FM, FM-W, FM-N, USB and LSB. Nine tuning steps are featured: 0.1, 1, 5, 10, 12.5, 25, 100 and 1000 kHz. The R7100-12 has a 9 bank, 900 channel memory. Scan types available: programmed, memory, selected mode memory, selected number memory, auto memory write, window scan and dual scan. A multi-functional five event, clock-timer provides convenience. The analog S-Meter will help you precisely tune stations. Other useful features include: VSC, NB, AFC, keypad entry, illuminated LCD display to 100 Hz., dimmer, attenuator, squelch, dial lock and ¼ inch headphone jack. The rear panel has jacks for external speaker, line output, recorder activation, remote, IF Output, AGC and N-type antenna input. 120/240 V AC.
The IC-R7100-2 GOVT model is the same as the R7100-12, but without the 800-900 MHz gap. The IC-R7100-12 GOVT can be purchased via government or qualifying commercial purchase order or for export only.
General characteristics
- HAM bands
- 6m 2m 1.25m 70cm 33cm 23cm 10m 4m
- Frequency stability
- ± 5 p.p.m. (below 1025 MHz)
- Tuning steps
- 0.1 / 1 / 5 / 10 / 12.5 / 25 / 100 / 1000 kHz
- Memories
- 900 channels in 9 bank(s)
Receiver
- RX-range
- 25-800 / 900-2000 MHz
- Modulations
- AM W-AM FM N-FM W-FM USB LSB
- Sensitivity
- AM: 1.6 µV (10 dB S/N)
FM: 0.35 µV (12 dB SINAD)
W-FM: 1 µV (12 dB SINAD)
SSB: 0.2 µV (10 dB S/N) - Selectivity
- AM/FM-N: 6 kHz (-6 dB)
FM/AM-W: 15 kHz (-6 dB)
W-FM: 150 kHz (-6 dB)
SSB: 2.4 kHz (-6 dB) - Filters
- ?
- Receiver system
- AM/FM/SSB: Triple-conversion, W-FM: Double-conversion superheterodyne
- IF-frequencies
- 25-512 MHz
1st: 778.7 MHz
2nd: 10.7 MHz
3rd: 455 KHz (AM/FM/SSB)
512-1025 MHz
1st: 266.7 MHz
2nd: 10.7 MHz
3rd: 455 KHz (AM/FM/SSB)
(Crystal converter system above 1025 MHz) - Image rejection
- >50 dB
- Audio output
- 2.0 Watts 4 - 8 Ohms
Connections
- Antenna
- N-type
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC or mains
- Current drain RX
- 1.5-1.9 A
- TX
- -
Physical
- Dimensions (w×h×d)
- 241 × 94 × 239 mm (9.49 × 3.70 × 9.41 in)
- Weight
- 6.00 kg (13.2 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1991 and 1998 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- TV option, CI-V
- Accessories
- -
- RigReference ID
- 3222
- MPN
- ICOM-IC-R007100
