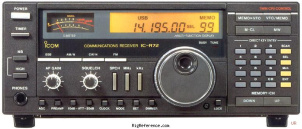

ICOM IC-R72DC

Desktop Shortwave receiver

Specs Manuals (1) Reviews (0) Prices (1) Compare

The ICOM IC-R72DC is a desktop shortwave receiver covering 0.03-30 MHz (Germany: 0.15-26.1 MHz) with a frequency stability of ± 30 Hz after 1 hour warm-up. Tuning steps are selectable at 10 Hz, 1 kHz or 1 MHz. It features a double conversion superheterodyne receiver system with image rejection ≥ 70 dB. It has an audio output of 2 W at 10% distortion / 8 ohms. The IC-R72DC includes 1 memory bank with 99 channels and can be powered by 13.8 V DC or mains. Its weight is 5.5 kg (excl. projections) and draws a maximum current of 1.2 A in receive mode. Dimensions are 94 × 241 × 229 mm.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
Frequency stability: ± 30 Hz after 1 hour warm-up
Tuning steps: 10 Hz / 1 kHz / 1 MHz
Memories: 99 channels in 1 bank(s)

Receiver

RX-range: 0.03-30 MHz (Germany: 0.15-26.1 MHz)
Modulations: AM FM CW SSB
Sensitivity: AM (10 dB S/N)
0.1-1.8 MHz: 12.6 uV
1.8-30 MHz: 2 uV (Preamp on)
FM (12 dB SINAD)
28-30 MHz: 0.5 µV (Preamp on)
SSB/CW (10 dB S/N)
0.1-1.8 MHz: 2 µV (Preamp on)
1.8-30 MHz: 0.16 µV (Preamp on)
Selectivity: AM
>6 kHz (-6 dB), <20 kHz (-60 dB)
FM
>15 kHz (-6 dB), <30 kHz (-60 dB)
SSB/CW/AM Narrow
>2.3 kHz (-6 dB), <4 kHz (-60 dB)
Filters: 250 / 500 Hz CW filters optional
Receiver system: Double conversion superheterodyne
IF-frequencies: ?
Image rejection: ≥ 70 dB
Audio output: 2 W at 10% distortion / 8 ohms

Connections

Antenna: SO-239
Impedance: 50 / 500Ω
Other: -

Electrical

Power requirements: 13.8 V DC or mains
Current drain RX: 1.2 A max
TX: -

Physical

Dimensions (w×h×d): 241 × 94 × 229 mm (9.49 × 3.70 × 9.02 in) excl. projections
Weight: 5.50 kg (12.1 lbs)
Form factor: Base Station
Manufactured: Between 1992 and 1998 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: Clock & timer
Pre-amp (10 dB)
Attenuator (20 dB)
Accessories: UI-8 FM receive unit (optional)
CR-64 High-stability crystal unit (optional)
UT-36 Voice synthesizer unit (optional)
UR-1 Receiver protection unit (optional)
RigReference ID: 3225
MPN: ICOM-IC-R000072DC

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Icom IC-R72 Instruction Manual PDF - 2.99 MB, submitted by RigReference

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-R72DC. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM IC-R72DC in Good condition is around:

USD 271

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2010	USD 305.00	Used / Good	eBay
