ICOM IC-R9000L

Desktop HF/VHF/UHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

Find ICOM IC-R9000L rigs and spare parts on eBay

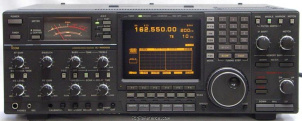

The ICOM IC-R9000L is a desktop HF/VHF/UHF scanner / receiver covering 0.1-1999.8 MHz. It has an internal speaker, 1 memory bank with 1000 channels and can be powered by mains or 13.8V DC. Dimensions are 150 × 424 × 365 mm.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 2m 1.25m 70cm 33cm 23cm 10m 4m 2000m
Frequency stability: ?
Tuning steps: ?
Memories: 1000 channels in 1 bank(s)

Receiver

RX-range: 0.1-1999.8 MHz
Modulations: AM FM W-FM CW SSB FSK
Sensitivity: AM (10 dB S/N)
0.1-5 MHz: 3.2 µV
0.5-1.8 MHz: 6.3 µV
1.8-30 MHz: 1 µV
30-1000 MHz: 1.4 µV
1000-1240 MHz: 4 µV
1240-1300 MHz: 2 µV
1300-1600 MHz: 4 µV
1600-2000 MHz: 5.6 µV
FM (12 dB SINAD)
30-1000 MHz: 0.5 µV
1000-1240 MHz: 1 µV
1240-1300 MHz: 0.5 µV
1300-1600 MHz: 1 µV
1600-2000 MHz: 1.4 µV
W-FM (12 dB SINAD)
30-1000 MHz: 1.4 µV
1000-1240 MHz: 4 µV
1240-1300 MHz: 2 µV
1300-1600 MHz: 4 µV
1600-2000 MHz: 5.6 µV
SSB/CW/FSK (10 dB S/N)
0.1-0.5 MHz: 0.5 µV
0.5-1.8 MHz: 1 µV
1.8-30 MHz: 0.16 µV
30-1000 MHz: 0.32 µV
1000-1240 MHz: 0.63 µV
1240-1300 MHz: 0.32 µV
1300-1600 MHz: 0.63 µV
1600-2000 MHz: 1 µV
Selectivity: AM
6 kHz (-6 dB)
FM
15 kHz (-6 dB)
W-FM
150 kHz (-6 dB)
SSB/CW/FSK
2.4 kHz (-6 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: Internal speaker

Connections

Antenna: N-type + RCA (Tulip)
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains or 13.8V DC
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 424 × 150 × 365 mm (16.69 × 5.91 × 14.37 in)
Weight: 20.00 kg (44.1 lbs)
Form factor: Base Station
Manufactured: Between 1999 and 200x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: Same as model E, but with color LCD instead.
Accessories: -
RigReference ID: 3229
MPN: ICOM-IC-R009000L

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-R9000L. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-R9000L is around:

USD 390.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2010	USD 2999.00	Used / Mint	eBay
