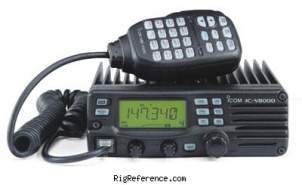

The ICOM IC-V8000 is a Mobile VHF Transceiver. It covers 136-174 MHz in receive and 144-146 MHz (Asia) or 144-148 MHz (USA) in transmit. Frequency stability is ± 10 p.p.m. (-10°C to +60°C). Tuning steps are selectable from 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz. The receiver system is a Double conversion superheterodyne with IF frequencies of 1st 21.7 MHz and 2nd 450 kHz. Image rejection is 75 dB. RF output power is selectable from 5 / 10 / 25 / 75 W. Audio output is more than 2 W at 10% distortion with an 8 ohm load. It features 1 memory bank with 207 channels. Power requirements are 13.8 V DC +/-15% (negative ground). The IC-V8000 has selectable green or amber display, CTCSS and DCS, standard DTMF encoder and optional decoder, and weather alert scan (US version only). Dimensions are 50 × 150 × 150 mm. Weight is 1.1 kg. Current drain in receive is 0.3-1 A and 15 A max in transmit.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ± 10 p.p.m. (-10°C to +60°C)
- Tuning steps
- 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
- Memories
- 207 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz
- Modulations
- FM AFSK
- Sensitivity
- Less than 0.15 µV for 12 dB SINAD
- Selectivity
- More than 6/3 kHz at -6 dB, Less than 14/9 kHz at -60 dB
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st 21.7 MHz
2nd 450 kHz - Image rejection
- 75 dB
- Audio output
- More than 2 W at 10% distortion with an 8 load
Transmitter
- TX-range
- 144-146 MHz (Asia)
144-148 MHz (USA) - Modulations
- FM AFSK
- RF-output
- 5 / 10 / 25 / 75 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC +/-15% (negative ground)
- Current drain RX
- 0.3-1 A
- TX
- 15 A max
Physical
- Dimensions (w×h×d)
- 150 × 50 × 150 mm (5.91 × 1.97 × 5.91 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2002 and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Selectable green or amber display. CTCSS and DCS. Standard DTMF encoder and optional decoder. Weather alert scan (US version only).
- Accessories
- -
- RigReference ID
- 3257
- MPN
- ICOM-IC-V008000
