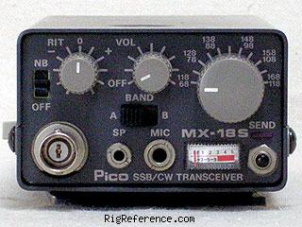

JIM MX-18S

General characteristics

HAM bands

17m (WARC)

Frequency stability

Initial fluctuation ± 500 Hz, then 100 Hz / 30 min (25 °C)

Tuning steps

?

Memories

?

Receiver

RX-range

17 m (50 kHz per XTAL)

Modulations

CW   SSB

Sensitivity

0.5 µV input S/N 15 dB or more

Selectivity

?

Filters

?

Receiver system

Single conversion superheterodyne VXO. Max 2 XTALS

IF-frequencies

11.2735 MHz

Image rejection

?

Audio output

?

Transmitter

TX-range

17 m (50 kHz per XTAL)

Modulations

CW   SSB

RF-output

2 W

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

9.5 V DC

Current drain RX

68 mA

TX

620 mA max

Physical

Dimensions (w×h×d)

66 × 142 × 39 mm (2.60 × 5.59 × 1.54 in)

Weight

645 gr (1.4 lbs) batteries included

Form factor

Handheld

Manufactured

Between 1989 and 2002 in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3279

MPN

JIM-MX-000018S
