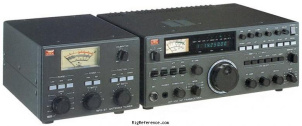

JRC JST-100D

General characteristics

HAM bands

160m  80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

11 channels in 1 bank(s)

Receiver

RX-range

10-160 m

Modulations

AM   FM   CW   SSB   RTTY

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-160 m

Modulations

AM   FM   CW   SSB   RTTY

RF-output

100 W (10m: 50 W)

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

348 × 145 × 347 mm (13.70 × 5.71 × 13.66 in) including protrusions

Weight

10.00 kg (22.1 lbs)

Form factor

Base Station

Manufactured

Between 1983 and 19xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Full QSK

Accessories

-

RigReference ID

3286

MPN

JRC-JST-000100D
