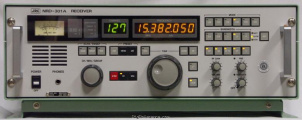

What kind of receiver is designed for professional use, 24 hours per day? What kind of receiver is designed for intuitive, non-fatiguing monitoring by shipboard radio operators? Such a receiver is the Japan Radio Company's NRD-301A. The display is large. The knobs are large. Each mode has a separate button. Each bandwidth has a separate button. There are separate knobs for RF Gain, Volume, Pass Band Shift and Squelch. This receiver is a dream to operate and is arguably the most impressive looking radio we have ever offered. And performance, as you would expect, is second to none. Many user defined functions are available to tailor the receivers operation to your requirements.
Coverage is 90.000 to 29999.999 kHz with 1 Hz display in LSB, USB, AM, CW, DSB (AM), FSK (RTTY) and FAX modes. Supplied bandwidths include: 6, 3 and 0.5 kHz (0.3 and 1 kHz optional). The built in 300 channel memory stores: frequency, mode, bandwidth, AGC and ATT data. Scan and sweep are supported. Other refinements include: AF Filter, NB, Lock, Dimmer, Self-Test, AGC selection and front-firing built-in speaker. A built in self-test function is also featured. A spare parts kit including fuse, relay hex socket screw keys is included. The AC input supply voltage is user selectable from the back panel.
The NRD-301A is designed for mounting in a standard 19 inch commercial rack
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m 2000m
- Frequency stability
- ± 20 Hz after 1 min below 13 MHz. ± 50 Hz after 1 min > 13 MHz.
- Tuning steps
- 1 / 10 / 100 Hz, 1 / 5 / 9 / 10 / 100 kHz
- Memories
- ?
Receiver
- RX-range
- 0.09-30 MHz
- Modulations
- AM CW USB LSB DSB RTTY FAX
- Sensitivity
- 2µV SSB 1.8-30 MHz (10 dB S+N/N)
- Selectivity
- 6.0 kHz
3.0 kHz
0.5 kHz
1.0 kHz [Optional]
0.3 kHz [Optional] - Filters
- ?
- Receiver system
- Up Conversion Dual Superheterodyne
- IF-frequencies
- ?
- Image rejection
- > 70 dB
- Audio output
- 1 Watts at 8 Ohms
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 24 V DC or mains
- Current drain RX
- 36 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 480 × 150 × 290 mm (18.90 × 5.91 × 11.42 in)
- Weight
- 7.50 kg (16.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3293
- MPN
- JRC-NRD-000301A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used JRC NRD-301A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the JRC NRD-301A is around:
- USD 154.00
These estimates are based on the following prices:
