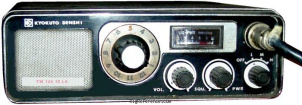

KDK FM-144 10LA

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find KDK FM-144 10LA rigs and spare parts on eBay

The KDK FM-144 10LA is a Mobile VHF Transceiver. It covers the frequency range of 144-146 MHz for both reception and transmission. The RF output power is selectable between 0.1, 1, and 10 W. It features 1 memory bank with 12 channels and requires a 12 V DC power supply. The current drain during transmit is 2.5 A max.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: Channelized
Memories: 12 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: XTAL
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: 0.1 / 1 / 10 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12 V DC
Current drain RX: ?
TX: 2.5 A max

Physical

Dimensions (w×h×d): ?
Weight: 2.00 kg (4.4 lbs)
Form factor: Mobile
Manufactured: Between 197x and 197x in discontinued in the early seventies

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3314
MPN: KDK-FM-000144-10LA
