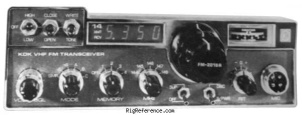

The KDK FM-2015R is a Mobile VHF Transceiver. It covers 144-148 MHz for both receive and transmit. The RF output power is selectable between High: 15 W and Low: 1 W. It has 1 memory bank with 4 channels. Power requirements are 13.8V DC. Current drain in receive mode is 330-450 mA, and 1.1-3.2 A in transmit mode. Dimensions are 60 × 180 × 195 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 4 channels in 1 bank(s) @ 2 channels/second
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 15 W, Low: 1 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 330-450 mA
- TX
- 1.1-3.2 A
Physical
- Dimensions (w×h×d)
- 180 × 60 × 195 mm (7.09 × 2.36 × 7.68 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3316
- MPN
- KDK-FM-002015R
