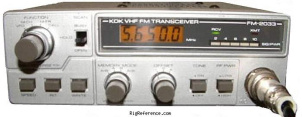

The KDK FM-2033 is a Mobile VHF Transceiver. It covers 142-159 MHz for both receive and transmit. RF output is selectable between High: 25 W and Low: 5 W. The transceiver requires 13.8V DC power and draws 300-800 mA in receive mode and a maximum of 6 A in transmit mode. Dimensions are 55 × 162 × 182 mm and the unit weighs 1.7 kg.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 142-159 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 142-159 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 300-800 mA
- TX
- Max 6 A
Physical
- Dimensions (w×h×d)
- 162 × 55 × 182 mm (6.38 × 2.17 × 7.17 in)
- Weight
- 1.70 kg (3.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3320
- MPN
- KDK-FM-002033
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used KDK FM-2033. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the KDK FM-2033 is around:
- EUR 6.00
- USD 2.00 ~ USD 47.00
These estimates are based on the following prices:
