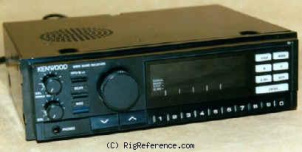

The Kenwood RZ-1 is a mobile HF/VHF/UHF scanner/receiver. It covers 0.5-905 MHz and has 1 memory bank with 100 channels. The receiver requires 11-16V DC power and draws a maximum of 1 A in receive mode. Dimensions are 50 × 180 × 158 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 0.5-905 MHz
- Modulations
- AM FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50/300 Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- Max 1 A
- TX
- -
Physical
- Dimensions (w×h×d)
- 180 × 50 × 158 mm (7.09 × 1.97 × 6.22 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1988 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3344
- MPN
- KENWOOD-RZ-000001
Manuals, diagrams and brochures
- Kenwood RZ-1 Instruction Manual PDF - Unknown size, submitted by RigReference
- Kenwood RZ-1 Service Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood RZ-1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Kenwood RZ-1 is around:
- AUD 14.00
These estimates are based on the following prices:
