Kenwood TM-401A

Mobile UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Kenwood TM-401A rigs and spare parts on eBay

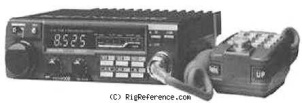

The Kenwood TM-401A is a Mobile UHF Transceiver. It covers 440-450 MHz for both receive and transmit with 25 kHz tuning steps. The RF output is selectable between High: 12 W and Low: 1 W. It requires 13.8V DC power and weighs 1.25 kg. Dimensions are 39 × 141 × 183 mm.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: 25 kHz
Memories: ?

Receiver

RX-range: 440-450 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 440-450 MHz
Modulations: FM
RF-output: High: 12 W, Low: 1 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 141 × 39 × 183 mm (5.55 × 1.54 × 7.20 in)
Weight: 1.25 kg (2.8 lbs)
Form factor: Mobile
Manufactured: Between 1983 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3399
MPN: KENWOOD-TM-000401A
