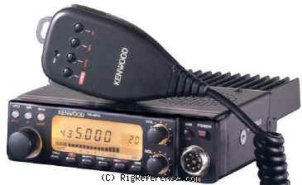

The Kenwood TM-431E is a Mobile UHF Transceiver. It covers 430-440 MHz for both receive and transmit. The rig offers RF output of High: 35 W, Medium: 10 W, Low: 5 W. It features 1 memory bank with 20 channels. Power requirements are 11-16V DC. Dimensions are 40 × 140 × 160 mm and the weight is 1.2 kg. Current drain is Max 700 mA while receiving and Max 9.5 A while transmitting.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 20 channels in 1 bank(s)
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM
- RF-output
- High: 35 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- Max 700 mA
- TX
- Max 9.5 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3401
- MPN
- KENWOOD-TM-000431E
Manuals, diagrams and brochures
- Kenwood TM-231 / TM-331 / TM-431 / TM-531 Manual PDF - Unknown size, submitted by RigReference
