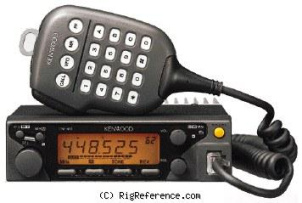

The Kenwood TM-461A is a Mobile UHF Transceiver. It covers 400-470 MHz for receive and 430-440 MHz (General) / 438-450 MHz (USA & Canada) for transmit. RF output is selectable as High: 35 W, Medium: 10 W, or Low: 5 W. It has 1 memory bank with 61 channels. Power requirements are 13.8V DC +/- 15%. Dimensions are 40 × 140 × 160 mm. Current drain is Max 600 mA (receive) and Max 10 A (transmit).
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 61 channels in 1 bank(s)
Receiver
- RX-range
- 400-470 MHz
- Modulations
- FM
- Sensitivity
- 0.16 µV (12 dB SINAD)
- Selectivity
- >12 kHz (-6 dB), <28 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz (General)
438-450 MHz (USA & Canada) - Modulations
- FM
- RF-output
- High: 35 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- Max 600 mA
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3405
- MPN
- KENWOOD-TM-000461A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-461A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Kenwood TM-461A is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
