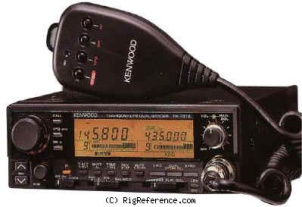

The Kenwood TM-731E is a Mobile VHF/UHF Transceiver. It covers 136-174 MHz for reception and 144-146 / 430-440 MHz for transmission. The radio has an RF output of High: 50/35 W, Low: 5/5 W. It features CTCSS and Twin RX capabilities. There are 1 memory bank with 30 channels. Power requirements are 11-16V DC.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
?
Memories
30 channels in 1 bank(s)

Receiver

RX-range
136-174 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-146 / 430-440 MHz
Modulations
FM
RF-output
High: 50/35 W, Low: 5/5 W

Connections

Antenna
N-type
Impedance
50 Ω
Other
-

Electrical

Power requirements
11-16V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 199x and 199x

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS. Twin RX
Accessories
-
RigReference ID
3416
MPN
KENWOOD-TM-000731E

Manuals, diagrams and brochures

Kenwood TM-631 / TM-731 Instruction Manual PDF - Unknown size, submitted by RigReference
