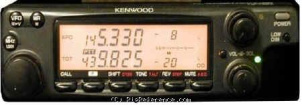

The Kenwood TM-732E is a Mobile VHF/UHF Transceiver. It covers 118-174 / 410-470 MHz for reception and 144-146 / 430-440 MHz for transmission. RF output power is selectable as High: 50/35 W, Medium: 10/10 W, or Low: 5/5 W. It features Twin RX. The transceiver requires 11-16V DC and draws a maximum of 11 A during transmit. Dimensions are 40 × 140 × 160 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 118-174 / 410-470 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- 3 A
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 1992 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
- Accessories
- -
- RigReference ID
- 3418
- MPN
- KENWOOD-TM-000732E
Manuals, diagrams and brochures
- Kenwood TM-732 Block Diagram PDF - Unknown size, submitted by RigReference
- Kenwood TM-732 Instruction Manual PDF - Unknown size, submitted by RigReference
- Kenwood TM-732 Schematic Diagram PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-732E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Kenwood TM-732E is around:
- GBP 158.00
These estimates are based on the following prices:
