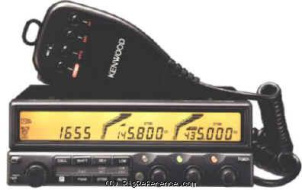

The Kenwood TM-742E is a mobile VHF/UHF transceiver. It covers 144-146 / 430-440 MHz with options for 10 m, 6 m or 23 cm bands. The RF output is High: 50/35 W, Medium: 10/10 W, Low: 5/5 W. It features triple RX and 1 memory bank with 101 channels. Power requirements are 13.8V DC. Dimensions are 50 × 150 × 175 mm.
General characteristics
- HAM bands
- 6m 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 101 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 / 430-440 MHz (10 m, 6 m or 23 cm options)
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (10 m, 6 m or 23 cm options)
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1.2 A
- TX
- Max 11.5 A
Physical
- Dimensions (w×h×d)
- 150 × 50 × 175 mm (5.91 × 1.97 × 6.89 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1994 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Triple RX
- Accessories
- -
- RigReference ID
- 3421
- MPN
- KENWOOD-TM-000742E
Manuals, diagrams and brochures
- Kenwood TM-642 / TM-742 / TM-942 Instruction Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-742E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Kenwood TM-742E is around:
- USD 586.00
These estimates are based on the following prices:
