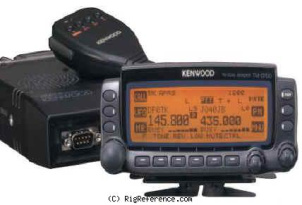

Kenwood TM-D700E

Mobile VHF/UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Kenwood TM-D700E rigs and spare parts on eBay

The Kenwood TM-D700E is a mobile VHF/UHF transceiver. It covers 118-524 / 800-1300 MHz for receive and 144-146 / 430-440 MHz for transmit. The receiver system is Double Super Heterodyne with IF frequencies of 1st: 38.85 MHz (VHF), 45.05 (UHF) and 2nd: 450 kHz (VHF), 455 kHz (UHF). RF output power is High: 50/35 W, Medium: 10/10 W, Low: 5/5 W. It features APRS, Auto repeater offset, Band scope, Built-in TNC 1K2/9K6, DTMF hand mic, DX-info, Dual display, PBBS, Packet 1200/9600 TNC, Remote head and Twin RX. The TM-D700E has 200 memory channels in 1 bank. It weighs 1.4 kg. Dimensions are 40 × 140 × 195 mm. Current drain is 1 A max (receive) and 11.5 A max (transmit).

General characteristics

HAM bands: 2m 70cm
Frequency stability: ±5ppm
Tuning steps: ?
Memories: 200 channels in 1 bank(s)

Receiver

RX-range: 118-524 / 800-1300 MHz
Modulations: AM FM N-FM
Sensitivity: Less than 0.16 µV (VHF/UHF)
Selectivity: -6 dB: More than 12 kHz
-40 dB: Less than 28 kHz
Filters: ?
Receiver system: Double Super Heterodyne
IF-frequencies: 1st: 38.85 MHz (VHF), 45.05 (UHF)
2nd: 450 kHz (VHF), 455 kHz (UHF)
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM N-FM
RF-output: High: 50/35 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna: N-type
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 1 A max
TX: 11.5 A max

Physical

Dimensions (w×h×d): 140 × 40 × 195 mm (5.51 × 1.57 × 7.68 in) Panel: 140×60×34 mm
Weight: 1.40 kg (3.1 lbs)
Form factor: Mobile
Manufactured: Between 2000 and 200x in Singapore

Other features

Usage: Amateur / Ham radio operators
Features + options: APRS
Auto repeater offset
Band scope
Built-in TNC 1K2/9K6
DTMF hand mic
DX-info
Dual display
PBBS
Packet 1200/9600 TNC
Remote head
Twin RX
Accessories: -
RigReference ID: 3427
MPN: KENWOOD-TM-D000700E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
