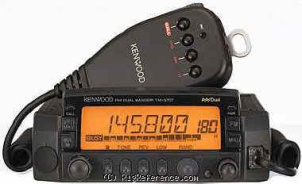

Kenwood TM-G707E

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Kenwood TM-G707E rigs and spare parts on eBay

The Kenwood TM-G707E is a Mobile VHF/UHF Transceiver. It covers 144-146 / 430-440 MHz for transmit and 118-174 / 300-520 / 800-999 MHz (after modification) for receive. The RF output is High: 50/35 W, Medium: 10/10 W, Low: 5/5 W. It features Alpha tags, CTCSS/PL and 1K2/9K6 bd packet ready. Dimensions are 40 × 140 × 189 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 180 channels in 1 bank(s)

Receiver

RX-range: 118-174 / 300-520 / 800-999 MHz (after modification)
Modulations: AM FM
Sensitivity: 0.16 µV (12 dB SINAD)
Selectivity: 12 kHz (-6 dB), 28 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 50/35 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna: N-type
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC +/- 15%
Current drain RX: Max 1 A
TX: Max 11 A

Physical

Dimensions (w×h×d): 140 × 40 × 189 mm (5.51 × 1.57 × 7.44 in)
Weight: 1.20 kg (2.6 lbs)
Form factor: Mobile
Manufactured: Between 1998 and 199x

Other features

Usage: Amateur / Ham radio operators
Features + options: Alpha tags. CTCSS/PL. 1K2/9K6 bd packet ready
Accessories: -
RigReference ID: 3431
MPN: KENWOOD-TM-G000707E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
