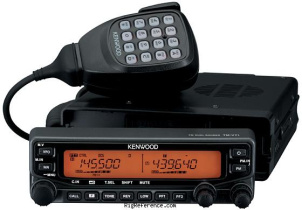

Kenwood TM-V71A

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

?

Memories

1000 channels in 1 bank(s)

Receiver

RX-range

118-524 / 800-1300 MHz

Modulations

AM   FM

Sensitivity

<0.16 µV (12 dB SINAD)

Selectivity

11 kHz (-6 dB), 30 kHz (-50 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-148 / 430-450 MHz

Modulations

FM

RF-output

High: 50/50 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

Max 1.2 A

TX

4-13 A

Physical

Dimensions (w×h×d)

140 × 43 × 181 mm (5.51 × 1.69 × 7.13 in) Panel: 1404338 mm

Weight

1.50 kg (3.3 lbs)

Form factor

Unknown

Manufactured

Between 2007 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

WX alert. CTCSS/DCS. Digital voice recorder option. Twin RX

Accessories

-

RigReference ID

3434

MPN

KENWOOD-TM-V000071A

Manuals, diagrams and brochures

TM V71 PDF - 4.48 MB, submitted by Berend



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-V71A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TM-V71A is around:

• USD 175.00 ~ USD 268.00

Price History Chart

These estimates are based on the following prices:
