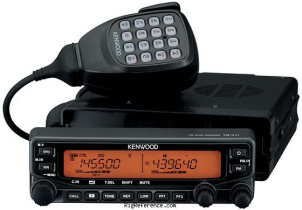

The Kenwood TM-V71A is a VHF/UHF transceiver. It covers 144-148 / 430-450 MHz for transmit and 118-524 / 800-1300 MHz for receive. RF output is selectable as High: 50/50 W, Medium: 10/10 W, or Low: 5/5 W. It features WX alert, CTCSS/DCS, a digital voice recorder option, and twin RX. The transceiver has 1 memory bank with 1000 channels. Power requirements are 13.8V DC. Dimensions are 43 × 140 × 181 mm. Current drain is Max 1.2 A while receiving and 4-13 A while transmitting. The TM-V71A weighs 1.5 kg.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 1000 channels in 1 bank(s)
Receiver
- RX-range
- 118-524 / 800-1300 MHz
- Modulations
- AM FM
- Sensitivity
- <0.16 µV (12 dB SINAD)
- Selectivity
- 11 kHz (-6 dB), 30 kHz (-50 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 430-450 MHz
- Modulations
- FM
- RF-output
- High: 50/50 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1.2 A
- TX
- 4-13 A
Physical
- Dimensions (w×h×d)
- 140 × 43 × 181 mm (5.51 × 1.69 × 7.13 in) Panel: 1404338 mm
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Unknown
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- WX alert. CTCSS/DCS. Digital voice recorder option. Twin RX
- Accessories
- -
- RigReference ID
- 3434
- MPN
- KENWOOD-TM-V000071A
