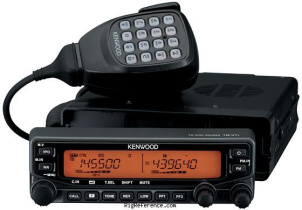

The Kenwood TM-V71E is a Mobile VHF/UHF Transceiver. It covers a frequency range of 144-146 / 430-440 MHz for transmit and 118-524 / 800-1300 MHz for receive. The RF output power is High: 50/50 W, Medium: 10/10 W, Low: 5/5 W. It features CTCSS/DCS and a digital voice recorder option. Dimensions are 43 × 140 × 181 mm. It requires 13.8V DC power and draws 4-13 A during transmit.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 118-524 / 800-1300 MHz
- Modulations
- AM FM
- Sensitivity
- <0.16 µV (12 dB SINAD)
- Selectivity
- 11 kHz (-6 dB), 30 kHz (-50 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- High: 50/50 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 4-13 A
Physical
- Dimensions (w×h×d)
- 140 × 43 × 181 mm (5.51 × 1.69 × 7.13 in) Panel: 140×43×38 mm
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS/DCS. Digital voice recorder option. Twin RX
- Accessories
- -
- RigReference ID
- 3435
- MPN
- KENWOOD-TM-V000071E
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-V71E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Kenwood TM-V71E is around:
- EUR 120.00 ~ EUR 46.00
