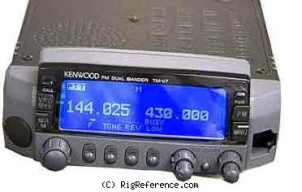

The Kenwood TM-V7E is a Mobile VHF/UHF Transceiver. It covers 144-146 / 430-440 MHz for both receive and transmit. The radio has an RF output of High: 50/35 W, Medium: 10/10 W, Low: 5/5 W. It features 9k6 packet ready, alpha tags, and twin RX. The TM-V7E has 1 memory bank with 280 memory channels. It requires 13.8V DC power and weighs 1.2 kg. Dimensions are 40 × 140 × 189 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 280 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- Sensitivity
- <0.16 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 28 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1 A
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 189 mm (5.51 × 1.57 × 7.44 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and xxxx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9k6 packet ready. Alpha tags. Twin RX
- Accessories
- -
- RigReference ID
- 3437
- MPN
- KENWOOD-TM-V000007E
Manuals, diagrams and brochures
- Kenwood TM V7 User Manual PDF - 2.38 MB, submitted by p H
- Tmv7AE Service PDF - 6.86 MB, submitted by p H
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-V7E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TM-V7E in Good condition is around:
- EUR 100 ~ EUR 169
- USD 170
These estimates are based on the following prices:
