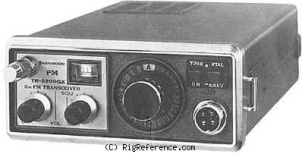

The Kenwood TR-2200GX is a portable VHF transceiver. It covers 144-146 MHz for both reception and transmission with an RF output of 2 W. The radio features 1 memory bank with 12 channels. It requires 9.6-15.6V DC power. Additional features include a 1750 Hz tone burst and VFO option. Dimensions are 58 × 135 × 191 mm. It weighs 1.6 kg including 10×NiCd batteries and microphone. The current drain is 45 mA while receiving and a maximum of 700 mA while transmitting.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 12 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- XTAL
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- 2 W
Connections
- Antenna
- Built-in sweep
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 9.6-15.6V DC
- Current drain RX
- 45 mA
- TX
- Max 700 mA
Physical
- Dimensions (w×h×d)
- 135 × 58 × 191 mm (5.31 × 2.28 × 7.52 in)
- Weight
- 1.60 kg (3.5 lbs) 10×NiCd and mic included
- Form factor
- Portable
- Manufactured
- Between 197x and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 1750 Hz tone burst
VFO option. - Accessories
- -
- RigReference ID
- 3444
- MPN
- KENWOOD-TR-002200GX
Manuals, diagrams and brochures
- Kenwood TR-2200 Instruction Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-2200GX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TR-2200GX in Good condition is around:
- GBP 100
These estimates are based on the following prices:
