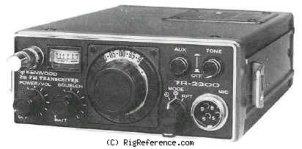

The Kenwood TR-2300 is a VHF transceiver. It covers 144-146 MHz for both receive and transmit with 25 kHz tuning steps. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 10.7 MHz and 2nd: 455 KHz - Ceramic filter: CFT455F2. RF output is 1 W. It requires 9.6-16V DC power. The current drain is 45 mA in receive and 450 mA in transmit. Dimensions are 51 × 122 × 175 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 25 kHz
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 KHz - Ceramic filter: CFT455F2 - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- 1 W
Connections
- Antenna
- Built-in sweep
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 9.6-16V DC
- Current drain RX
- 45 mA
- TX
- 450 mA
Physical
- Dimensions (w×h×d)
- 122 × 51 × 175 mm (4.80 × 2.01 × 6.89 in)
- Weight
- 1.20 kg (2.6 lbs) 10*NiCd included
- Form factor
- Unknown
- Manufactured
- Between 1979 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Illuminated dial PLL: SM5104GA
- Accessories
- -
- RigReference ID
- 3445
- MPN
- KENWOOD-TR-002300
