Kenwood TR-50

Mobile UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Kenwood TR-50 rigs and spare parts on eBay

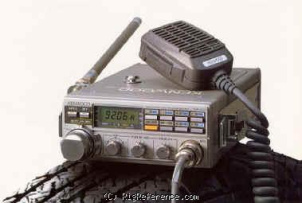

The Kenwood TR-50 is a Mobile UHF Transceiver. It covers 1260-1300 MHz for both RX and TX. The RF output is 1 W. It features 1 memory bank with 5 channels. Power requirements are 13.8V DC. The weight is 1.2 kg incl. battery and antenna. Current drain is 180 mA in RX and 850 mA in TX. Dimensions are 52 × 158 × 210 mm.

General characteristics

HAM bands: 23cm
Frequency stability: ?
Tuning steps: ?
Memories: 5 channels in 1 bank(s)

Receiver

RX-range: 1260-1300 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 1260-1300 MHz
Modulations: FM
RF-output: 1 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 180 mA
TX: 850 mA

Physical

Dimensions (w×h×d): 158 × 52 × 210 mm (6.22 × 2.05 × 8.27 in)
Weight: 1.20 kg (2.6 lbs) incl. battery and antenna
Form factor: Mobile
Manufactured: Between 1984 and 198x

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3453
MPN: KENWOOD-TR-000050

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Kenwood TR-50 PDF - 21.05 MB, submitted by Berend

: Upload relevant documents
