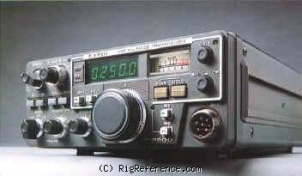

The Kenwood TR-9500 is a Mobile UHF Transceiver. It covers 430-440 MHz for both receive and transmit. The maximum RF output is 10 W. Power requirements are 13.8V DC with a current drain of 400 mA in receive mode and a maximum of 3 A in transmit mode.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM CW SSB
- RF-output
- 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 400 mA
- TX
- Max 3 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 1980 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3473
- MPN
- KENWOOD-TR-009500
Manuals, diagrams and brochures
- Kenwood TR-9500 Instruction Manual PDF - 3.65 MB, submitted by SharMark
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-9500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Kenwood TR-9500 is around:
- USD 367.00
These estimates are based on the following prices:
