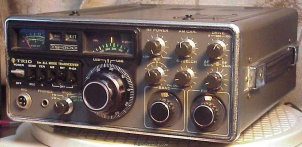

Kenwood TS-600

General characteristics

HAM bands

6m

Frequency stability

Within ±2 kHz during one hour after one minute of warm-up, and within 150 Hz during any 30 minute period thereafter

Tuning steps

?

Memories

?

Receiver

RX-range

50-54 MHz in 4 bands

Modulations

AM   FM   CW   SSB

Sensitivity

SSB/CW: 0.25 µV (10 dB S/N)
FM: 1 µV (30 dB S/N)
AM: 0.5 µV (10 dB S/N)

Selectivity

SSB/CW: 2.4 kHz (-6 dB), 4.8 kHz (-60 dB)
AM: 4 kHz (-6 dB), 12 kHz (-60 dB)
FM: 12 kHz (-6 dB), 32 kHz (-60 dB)

Filters

?

Receiver system

SSB/CW: Single conversion AM/FM: Double conversion

IF-frequencies

1st: 10.7 MHz
2nd: 455 kHz (AM/FM only)

Image rejection

> 70 dB

Audio output

2.5 W @ 4 ohm with 10% THD

Transmitter

TX-range

50-54 MHz

Modulations

AM   FM   CW   SSB

RF-output

10 W (AM: 5 W)

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC or mains 120/240 VAC

Current drain RX

0.8 A

TX

4 A max

Physical

Dimensions (w×h×d)

278 × 124 × 325 mm (10.94 × 4.88 × 12.80 in)

Weight

11.00 kg (24.3 lbs)

Form factor

Base Station

Manufactured

Between 197x and 197x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

20 fixed channels (5 per band), crystal controlled
Noise blanker
RIT

Accessories

-

RigReference ID

3495

MPN

KENWOOD-TS-000600

Manuals, diagrams and brochures

Kenwood TS-600 Operating Manual PDF - Unknown size, submitted by RigReference
