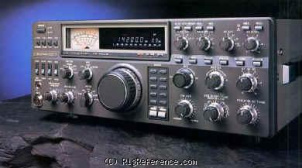

The Kenwood TS-930S is a superlative, high performance, all solid-state, HF transceiver capable of operation in SSB, CW, FSK and AM modes. Coverage includes the WARC bands. The all solid-state 28 volt final amplifier runs 250 watts PEP input on USB, LSB, CW and FSK and 80 watts on AM mode. Despite a multitued of features, the controls are very ergonomic and easy to use.
The Kenwood TS-930SAT features a factory installed AT-930 automatic antenna tuner.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.15-30 MHz
- Modulations
- AM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Quadruple conversion superheterodyne
- IF-frequencies
- 1st: 44.93 MHz
2nd: 8.83 MHz
3rd: 455 kHz
4th: 100 kHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160m + WARC
- Modulations
- AM CW USB LSB
- RF-output
- SSB: 250 W, AM: 25 W, FSK: 80 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1982 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Auto-AT option
- Accessories
- -
- RigReference ID
- 3515
- MPN
- KENWOOD-TS-000930S
Manuals, diagrams and brochures
- Kenwood TS-930S Service Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-930S Technical Info PDF - Unknown size, submitted by RigReference
- Kenwood TS-930S User Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-930S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Kenwood TS-930S is around:
- AUD 811.00
These estimates are based on the following prices:
