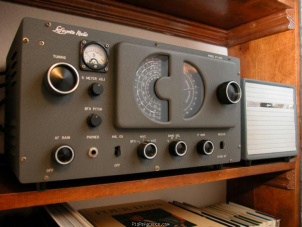

The Lafayette HE-10 is a very rare short-wave receiver. It looks similar to the Hallicrafters S-38, but is in fact very different.
The receiver was also sold as the Lafayette KT-200 in kit form.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.54-30 MHz in 4 bands
- Modulations
- AM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- 9 tubes
- IF-frequencies
- 455 kHz
- Image rejection
- ?
- Audio output
- 1.5 W, external speaker required
Connections
- Antenna
- Clamps / screws
- Impedance
- ~500Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 390 × 210 × 240 mm (15.35 × 8.27 × 9.45 in)
- Weight
- 11.00 kg (24.3 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1959 and 1963 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- ANL
AVC
BFO
IF Gain control
Receive/Standby switch - Accessories
- -
- RigReference ID
- 3545
- MPN
- LAFAYETTE-HE-000010-(KT-200)
Manuals, diagrams and brochures
- Lafayette He10 (9R-4J) HF Reciever Manual PDF - 470.7 kB, submitted by Berend
