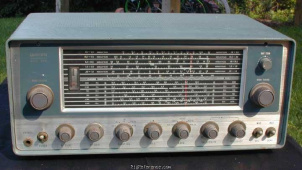

Lafayette HE-80

General characteristics

HAM bands

80m  40m  20m  15m  6m  10m

Frequency stability

?

Tuning steps

Continuous

Memories

None

Receiver

RX-range

0.55-30 / 48-54 MHz in 5 bands

Modulations

AM   FM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Superheterodyne, 14 tubes

IF-frequencies

455 kHz

Image rejection

?

Audio output

1.5 W

Connections

Antenna

SO-239 + Clamps / screws

Impedance

?

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

432 × 194 × 257 mm (17.01 × 7.64 × 10.12 in)

Weight

10.70 kg (23.6 lbs)

Form factor

Base Station

Manufactured

Between 1963 and 1964 in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Pre-selector stage
Electrical bandspread
Q-multiplier
ANL noise limiter
Switchable MVC/AVC
Antenna trimmer
Crystal calibrator
S-meter

Accessories

-

RigReference ID

3549

MPN

LAFAYETTE-HE-000080
