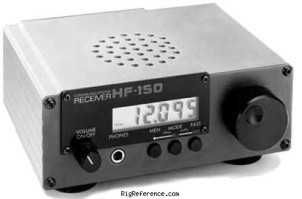

Lowe HF-150

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m  2000m

Frequency stability

?

Tuning steps

?

Memories

60 channels in 1 bank(s)

Receiver

RX-range

0.03-30 MHz

Modulations

AM   AM-sync   USB   LSB

Sensitivity

Into 50 ohms aerial input, for 10 dB S/N:
AM: <2 µV (50-500 kHz), <1 µV (0.5-30 MHz)
SSB: 1 µV (50-500 kHz), <0.5 µV (0.5-30 MHz)

Selectivity

2.6 kHz (-6 dB), 4.1 kHz (-60 db) with narrow filter
6.5 kHz (-6 dB), 10.2 kHz (-60 dB) with wide filter

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

Better than 65 dB

Audio output

?

Connections

Antenna

Clamps / screws + Hi-Z

Impedance

50Ω

Other

-

Electrical

Power requirements

12V DC external or 8LR6/AA internal

Current drain RX

130-300 mA

TX

-

Physical

Dimensions (w×h×d)

185 × 80 × 175 mm (7.28 × 3.15 × 6.89 in)

Weight

1.30 kg (2.9 lbs) without batteries

Form factor

Mobile

Manufactured

Between 1992 and 1999 in Great Britain

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3554

MPN

LOWE-HF-000150

Manuals, diagrams and brochures

Lowe HF-150 Operating Manual PDF - 6.18 MB, submitted by Gerd

Lowe Hf150 Technical Manual PDF - 9.82 MB, submitted by Berend
