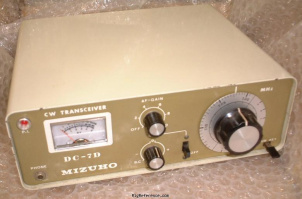

The Mizuho DC-7D is a 7.0-7.1 MHz transceiver with continuous tuning steps. RF output is 1 W. Power requirements are 13.5V DC. Dimensions are 65 × 202 × 173 mm.
General characteristics
- HAM bands
- 40m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 7.0-7.1 MHz
- Modulations
- CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 7.0-7.1 MHz
- Modulations
- CW
- RF-output
- 1 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.5V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 202 × 65 × 173 mm (7.95 × 2.56 × 6.81 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 1975 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3581
- MPN
- MIZUHO-DC-000007D
