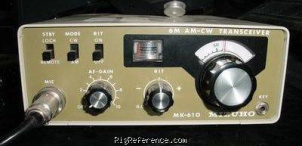

The Mizuho MK-610 is a VHF transceiver covering 50-54 MHz for both receive and transmit. RF output is 1 W. Power requirements are 12V DC (8R14 / C batteries). The radio weighs 1.5 kg, measures 63 × 165 × 185 mm. Current drain in receive mode is 50 mA, and max 400 mA in transmit mode.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 50-54 MHz
- Modulations
- AM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 50-54 MHz
- Modulations
- AM CW
- RF-output
- 1 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12V DC (8R14 / C batteries)
- Current drain RX
- 50 mA
- TX
- Max 400 mA
Physical
- Dimensions (w×h×d)
- 165 × 63 × 185 mm (6.50 × 2.48 × 7.28 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Unknown
- Manufactured
- Between 1976 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3586
- MPN
- MIZUHO-MK-000610
