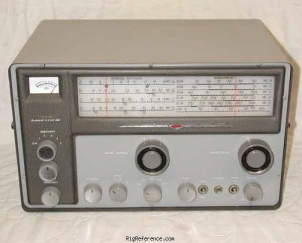

The National Company NC-109 is a desktop HF/VHF receiver covering 0.54-40 MHz. It features a frequency stability of 0.01% or less and filters of 200Hz / 5.2kHz with an IF frequency of 455 kHz. The audio output is 1.5 watts at less than 10% distortion. Dimensions are 254 × 412 × 276 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- 0.01% or less
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.54-40 MHz
- Modulations
- AM CW SSB
- Sensitivity
- Better than 1-2 µV (10dB S/N)
- Selectivity
- 6 positions
- Filters
- 200Hz / 5.2kHz
- Receiver system
- ?
- IF-frequencies
- 455 kHz
- Image rejection
- ?
- Audio output
- 1.5 watts at less than 10% distortion
Connections
- Antenna
- Clamps / screws
- Impedance
- 50/300Ω
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 412 × 254 × 276 mm (16.22 × 10.00 × 10.87 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1957 and 1960 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3628
- MPN
- NATIONAL-COMPANY-NC-000109
Manuals, diagrams and brochures
-
No documents available for this particular model.
