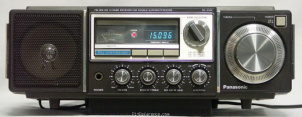

The Panasonic RF-3100 covers 550 to 29999 kHz with a 1 kHz digital display and FM from 87.5-108 MHz. The band selector selects, AM, FM and 29 1 MHz shortwave bands. Modes of reception include AM and CW/SSB. The large 3.5 inch speaker plus Bass and Treble combine to offer nice fidelity.

Features include: ¼ inch headphone jack, S-Battery meter, carry strap, RF gain, Wide/Narrow selectivity, meter lamp switch, external antenna jack and telescopic antenna.

The Panasonic RF-3100L [DR31] is the European version and covers the longwave broadcast band as well.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.525-30 / 88-108 MHz
Modulations
AM   W-FM   CW   SSB
Sensitivity
1.4µV
Selectivity
3 / 7 kHz (-6dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.695 MHz
2nd: 455 kHz
Image rejection
?
Audio output
?

Connections

Antenna
Clamps / screws + Built-in sweep
Impedance
50/75Ω
Other
-

Electrical

Power requirements
Mains or 12V DC (8×LR20 / D)
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
370 × 122 × 241 mm (14.57 × 4.80 × 9.49 in)
Weight
3.60 kg (7.9 lbs)
Form factor
Handheld
Manufactured
Between 1982 and 1985 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
3672
MPN
NATIONAL-/-PANASONIC-RF-003100
