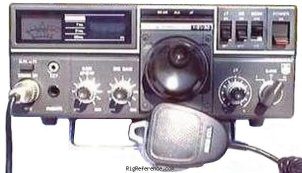

The NCG 7/21/50 is a Mobile HF/VHF Transceiver. It covers 40/15/6 m bands for both receive and transmit. Maximum RF output is 10 W. The transceiver requires 13.8V DC or mains power. Current drain is Max 600 mA while receiving and Max 4 A while transmitting. Dimensions are 99 × 246 × 269 mm.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 40/15/6 m
- Modulations
- CW SSB
- Sensitivity
- 0.25 µV (10 dB S/N)
- Selectivity
- SSB: 2.2 kHz (-6 dB)
CW: 400 Hz (-6 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 40/15/6 m
- Modulations
- CW SSB
- RF-output
- Max 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- Max 600 mA
- TX
- Max 4 A
Physical
- Dimensions (w×h×d)
- 246 × 99 × 269 mm (9.69 × 3.90 × 10.59 in)
- Weight
- 5.00 kg (11.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3687
- MPN
- NCG-000007/21/50
Manuals, diagrams and brochures
-
No documents available for this particular model.
