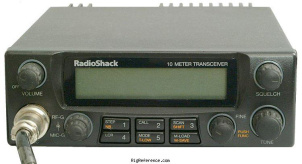

RadioShack / Realistic HTX-10

General characteristics

HAM bands

10m

Frequency stability

?

Tuning steps

1 / 10 / 100 kHz

Memories

?

Receiver

RX-range

28-29.7 MHz (25.150-29.7 after modification)

Modulations

AM   FM   SSB

Sensitivity

0.5 µV (10 dB S/N)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

>70 dB

Audio output

?

Transmitter

TX-range

28-29.7 MHz (25.150-29.7 after modification)

Modulations

AM   FM   SSB

RF-output

AM: 7 W, FM/SSB: 25 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12-16V DC

Current drain RX

?

TX

3-5 A

Physical

Dimensions (w×h×d)

154 × 52 × 248 mm (6.06 × 2.05 × 9.76 in)

Weight

1.50 kg (3.3 lbs)

Form factor

Mobile

Manufactured

Between 199x and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

Repeater offset (Shift)

Accessories

-

RigReference ID

3768

MPN

RADIOSHACK-REALISTIC-HTX-000010

Manuals, diagrams and brochures

Radioshack HTX-10 Owner's Manual PDF - 2.05 MB, submitted by Gerd

Radioshack HtX-10 Service Manual PDF - 2.88 MB, submitted by Gerd



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RadioShack / Realistic HTX-10. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the RadioShack / Realistic HTX-10 is around:

• EUR 36.00
• USD 6.00 ~ USD 2.00

Price History Chart

These estimates are based on the following prices:
