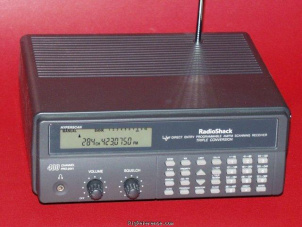

The RadioShack / Realistic Pro-2041 is a desktop VHF/UHF scanner / receiver. It covers 29-54 / 108-174 / 380-512 / 806-960 MHz and has a triple conversion superheterodyne receiver system with IF frequencies of 1st: 257.5 MHz, 2nd: 21.4 MHz, and 3rd: 0.455 MHz. It features tuning steps of 5 / 12.5 / 25 kHz and has 10 memory banks with 400 channels. The audio output is 1 W. Dimensions are 89 × 216 × 171 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 12.5 / 25 kHz
- Memories
- 400 channels in 10 bank(s) @ 50 channels/second
Receiver
- RX-range
- 29-54 / 108-174 / 380-512 / 806-960 MHz
- Modulations
- AM FM
- Sensitivity
- FM: 1 - 2 µV
AM: 2 µV - Selectivity
- ?
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- 1st: 257.5 MHz
2nd: 21.4 MHz
3rd: 0.455 MHz - Image rejection
- ?
- Audio output
- 1 W
Connections
- Antenna
- Built-in sweep
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 216 × 89 × 171 mm (8.50 × 3.50 × 6.73 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3781
- MPN
- RADIOSHACK-/-REALISTIC-PRO-002041
Manuals, diagrams and brochures
- Radioshack PRO-2041 Care and Maintenance manual PDF - 109.3 kB, submitted by Gerd
