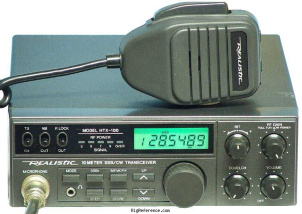

The RadioShack / Realistic HTX-100 is a 28-29.7 MHz transceiver with an image rejection of 65 dB. The RF output is selectable between High: 25 W and Low: 5 W. It requires 13.8V DC +/- 15 %. Dimensions are 62 × 185 × 200 mm.
General characteristics
- HAM bands
- 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 28-29.7 MHz
- Modulations
- CW SSB
- Sensitivity
- 0.25 µV (10 dB S/N)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 65 dB
- Audio output
- ?
Transmitter
- TX-range
- 28-29.7 MHz
- Modulations
- CW SSB
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15 %
- Current drain RX
- 0.5-1 A
- TX
- Max 6 A
Physical
- Dimensions (w×h×d)
- 185 × 62 × 200 mm (7.28 × 2.44 × 7.87 in)
- Weight
- 1.90 kg (4.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1988 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3830
- MPN
- RADIOSHACK-REALISTIC-HTX-000100
Manuals, diagrams and brochures
- Radioshack HTX-100 Owner's Manual PDF - 1.16 MB, submitted by Gerd
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| RadioShack / Realistic HTX-100 HF Transceiver | 13 years ago by ve3kko |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RadioShack / Realistic HTX-100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the RadioShack / Realistic HTX-100 is around:
- USD 85.00 ~ USD 38.00
These estimates are based on the following prices:
