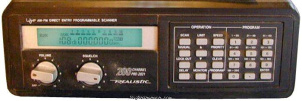

The RadioShack / Realistic Pro-2021 is a Mobile VHF/UHF Scanner / receiver. It covers 30-54 / 108-136 / 138-174 / 380-512 MHz (USA) and 68-88 / 108-136 / 138-174 / 380-512 MHz (EU). It features a Double conversion superheterodyne receiver system with 1st IF: 10.7 MHz and 2nd IF: 455 kHz. Image rejection is ≥ 50 dB. The radio has 10 memory banks and 200 memory channels. Audio output is 1.5 W max. It requires 12V DC or mains power. Dimensions are 80 × 260 × 200 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 200 channels in 10 bank(s) @ 8 channels/second
Receiver
- RX-range
- 30-54 / 108-136 / 138-174 / 380-512 MHz (USA)
68-88 / 108-136 / 138-174 / 380-512 MHz (EU) - Modulations
- AM FM
- Sensitivity
- AM
108-136 MHz: 2.0 µV
FM
68-88 MHz: 0.5 µV
138-174 MHz: 1.0 µV
380-512 MHz: 1.0 µV - Selectivity
- ± 9 kHz @ -6 dB
± 15 kHz @ -50 dB - Filters
- 1 crystal + 1 ceramic
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- ≥ 50 dB
- Audio output
- 1.5 W max
Connections
- Antenna
- KOK1 (Motorola/DIN41585)
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 260 × 80 × 200 mm (10.24 × 3.15 × 7.87 in)
- Weight
- 2.00 kg (4.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3854
- MPN
- RADIOSHACK-/-REALISTIC-PRO-002021
Manuals, diagrams and brochures
- Realistic Pro-2021 Handleiding (instruction manual) - Dutch PDF - Unknown size, submitted by RigReference
- Realistic PRO-2021 User Manual PDF - 4.72 MB, submitted by Mike
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RadioShack / Realistic Pro-2021. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the RadioShack / Realistic Pro-2021 is around:
- AUD 334.00
These estimates are based on the following prices:
