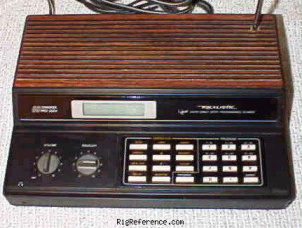

The RadioShack / Realistic Pro-2024 is a desktop VHF/UHF scanner / receiver. It covers 30-54 / 118-136 / 138-174 / 380-512 MHz (USA). Tuning steps are 5 / 12.5 / 25 kHz depending on band. The receiver system is a double conversion superheterodyne with IF frequencies of 10.7 MHz / 455 kHz and image rejection of 70 dB. It features 1 crystal, 1 ceramic filter. Audio output is 1.2 W. The Pro-2024 has 60 memory channels in 1 memory bank. Power requirements are 12 V DC or mains. Dimensions are 60 × 250 × 180 mm and the weight is 1.5 kg. Current drain in receive mode is 13 W.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 5 / 12.5 / 25 kHz depending on band
- Memories
- 60 channels in 1 bank(s)
Receiver
- RX-range
- 30-54 / 118-136 / 138-174 / 380-512 MHz (USA)
- Modulations
- AM FM
- Sensitivity
- 30-54 mhzL 0.5 µV
118-136 MHz: 2.0 µV
138-174 MHz: 1.0 µV
380-215 MHz: 1.0 µV - Selectivity
- 9 kHz @ -6 dB, 15 kHz @ -50 dB
- Filters
- 1 crystal, 1 ceramic
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 10.7 MHz / 455 kHz
- Image rejection
- 70 dB
- Audio output
- 1.2 W
Connections
- Antenna
- Built-in telescopic
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12 V DC or mains
- Current drain RX
- 13 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 250 × 60 × 180 mm (9.84 × 2.36 × 7.09 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3857
- MPN
- RADIOSHACK-/-REALISTIC-PRO-002024
Manuals, diagrams and brochures
- Realistic PRO-2024 Owners Manual PDF - 2.40 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RadioShack / Realistic Pro-2024. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the RadioShack / Realistic Pro-2024 is around:
- USD 2.00 ~ USD 5.00
These estimates are based on the following prices:
