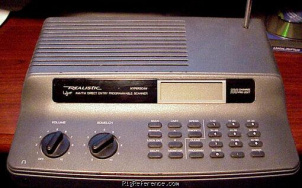

The RadioShack / Realistic Pro-2027 is a desktop VHF/UHF scanner / receiver. It covers 30-54 / 108-174 / 380-512 / 806-960 MHz (USA). The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. It features 10 memory banks with 100 channels. Audio output is 1.2 W nominal. Dimensions are 250 × 180 × 60 mm. It requires 12 V DC or mains power.
General characteristics
- HAM bands
- 6m 2m 70cm 33cm
- Frequency stability
- ?
- Tuning steps
- 5 / 12.5 / 25 kHz
- Memories
- 100 channels in 10 bank(s) @ 25 channels/second
Receiver
- RX-range
- 30-54 / 108-174 / 380-512 / 806-960 MHz (USA)
- Modulations
- AM FM
- Sensitivity
- 30-57 MHz: 0.5 µV
108-137 MHz: 2.0 µV
137-512 MHz: 1.0 µV
806-906 MHz-: 2.0 µV - Selectivity
- 10 kHz @ -6 dB / 20 kHz @ -50 dB
- Filters
- ?
- Receiver system
- Doulbe conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 1.2 W nominal
Connections
- Antenna
- BNC + Built-in telescopic
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12 V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 180 × 250 × 60 mm (7.09 × 9.84 × 2.36 in)
- Weight
- 1.50 kg (3.3 lbs) without antenna
- Form factor
- Base Station
- Manufactured
- Between 1992 and 199x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3860
- MPN
- 20-402
Manuals, diagrams and brochures
- Radioshack PRO-2027 Owner's Manual PDF - 15.01 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RadioShack / Realistic Pro-2027. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
