Sangean ATS-803

Handheld HF/VHF Receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

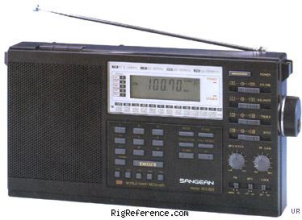

The Sangean ATS-803 is a handheld HF/VHF receiver. It covers 0.150-30 MHz and 87.5-108 MHz with tuning steps of 9 kHz or 10 kHz. The receiver system is double conversion superheterodyne. It features 1 memory bank with 15 channels, a clock, and RF gain. Dimensions are 160 × 293 × 60 mm. It requires 9V DC (6R20/D + 2R6/AA) power.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
Frequency stability: ?
Tuning steps: 9 / 10 kHz
Memories: 15 channels in 1 bank(s)

Receiver

RX-range: 0.150-30 / 87.5-108 MHz
Modulations: AM W-FM Stereo CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: -
Impedance: ?
Other: -

Electrical

Power requirements: 9V DC (6R20/D + 2R6/AA)
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 293 × 160 × 60 mm (11.54 × 6.30 × 2.36 in)
Weight: 1.75 kg (3.9 lbs)
Form factor: Portable
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Clock. RF gain
Accessories: -
RigReference ID: 3941
MPN: SANGEAN-ATS-000803

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sangean ATS-803. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Sangean ATS-803 is around:

USD 140 ~ USD 260

This estimate is based on similar equipment and may not reflect the exact value of this model.
