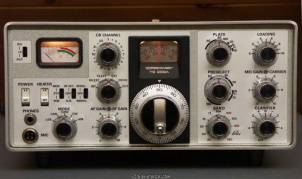

Sommerkamp TS-288A/24CH

General characteristics

HAM bands

160m  80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

24 channels in 1 bank(s)

Receiver

RX-range

10-160m / 10-10.5 MHz (WWV)
26.965-27.255 MHz

Modulations

CW   SSB

Sensitivity

AM: 2 µV (10 dB S/N)
SSB/CW: 0.5 µV (10 dB S/N)

Selectivity

AM/SSB: 2.4 kHz (-6 dB), 4.4 kHz (-60 dB)
CW (option): 600 Hz (-6 dB), 1.2 kHz (-60 dB)

Filters

?

Receiver system

X-TAL

IF-frequencies

?

Image rejection

>50 dB

Audio output

?

Transmitter

TX-range

10-160m / 10-10.5 MHz (WWV)
26.965-27.255 MHz

Modulations

CW   SSB

RF-output

AM: 80 W (input), 50% duty cycle (slightly lower on 10m), SSB: 260 W (PEP input), CW: 180 W (input)

Connections

Antenna

SO-239

Impedance

50/75 Ω

Other

-

Electrical

Power requirements

13.8V DC or mains

Current drain RX

0.5 A

TX

Max 21 A

Physical

Dimensions (w×h×d)

340 × 153 × 285 mm (13.39 × 6.02 × 11.22 in)

Weight

15.00 kg (33.1 lbs)

Form factor

Base Station

Manufactured

Between 1972 and 1974 in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

27.265-27.555 MHz XTAL option, RX and TX.

Accessories

-

RigReference ID

3994

MPN

SOMMERKAMP-TS-000288A/24CH
