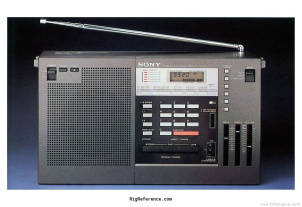

The Sony ICF-2001D is a handheld HF/VHF receiver covering 0.15-30 / 76-108 / 116-136 MHz. It features scanning and a clock/timer. The radio has 1 memory bank with 32 channels. Power requirements are 4.5V DC external or 3R14 + 3R6 batteries. Dimensions are 160 × 290 × 50 mm.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 32 channels in 1 bank(s)
Receiver
- RX-range
- 0.15-30 / 76-108 / 116-136 MHz
- Modulations
- AM W-FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- Built-in ferrite bar + Built-in sweep
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 4.5V DC external or 3R14 + 3R6 batteries
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 290 × 160 × 50 mm (11.42 × 6.30 × 1.97 in)
- Weight
- 1.80 kg (4.0 lbs)
- Form factor
- Handheld
- Manufactured
- Between 1985 and 2003 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Scanning. Clock/timer.
- Accessories
- -
- RigReference ID
- 4011
- MPN
- SONY-ICF-002001D
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sony ICF-2001D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Sony ICF-2001D is around:
- EUR 144.00
- GBP 6.00
These estimates are based on the following prices:
